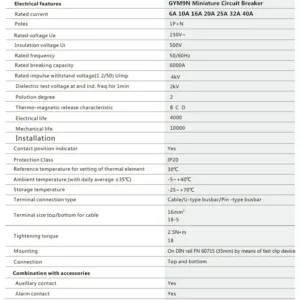

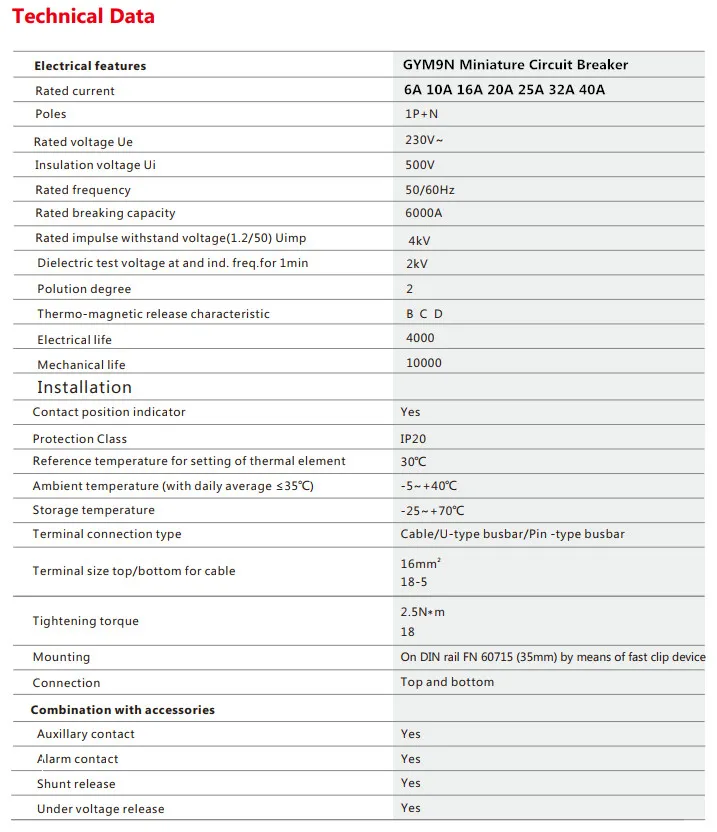

SPECIFICATIONS

Brand Name: GEYA

Breaking Capacity: 6KA

Certification: CE

Choice: yes

Current: 6A 10A 16A 20A 25A 32A 40A

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Electrical Life: 4000

High-concerned chemical: none

Insulation Voltage Ui: 500V

Is Smart Device: no

Mechanical Life: 10000

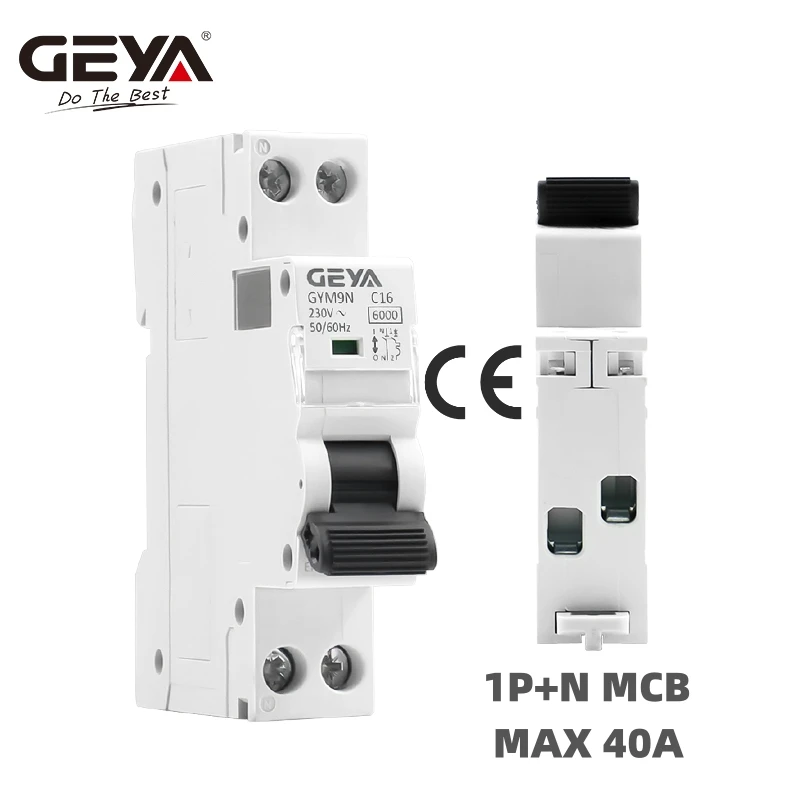

Model Number: GYM9N 1P+N MCB

Mounting: Din Rail

Origin: Mainland China

Poles: 1P+N

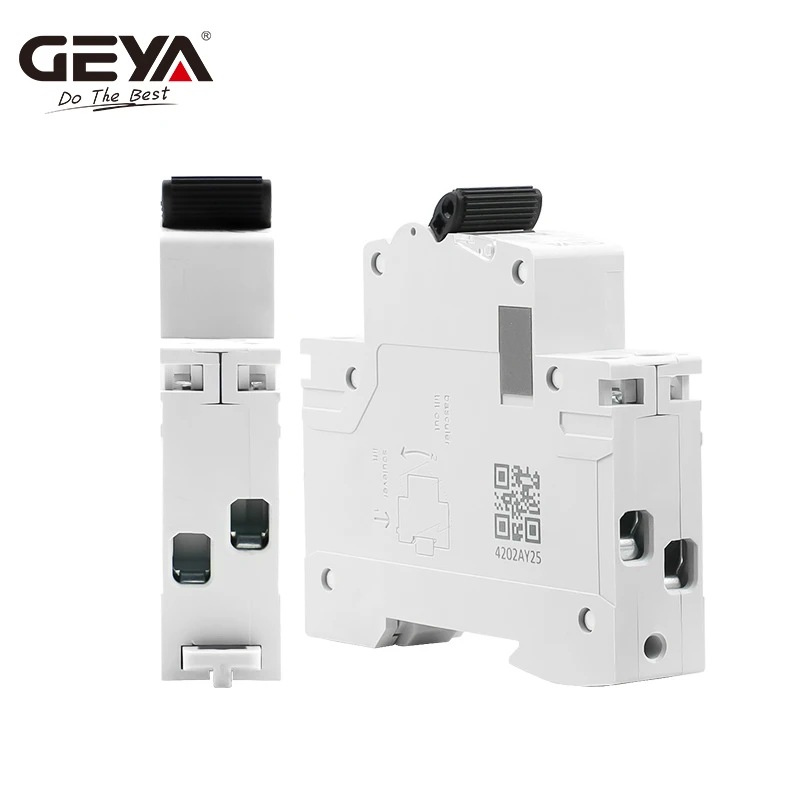

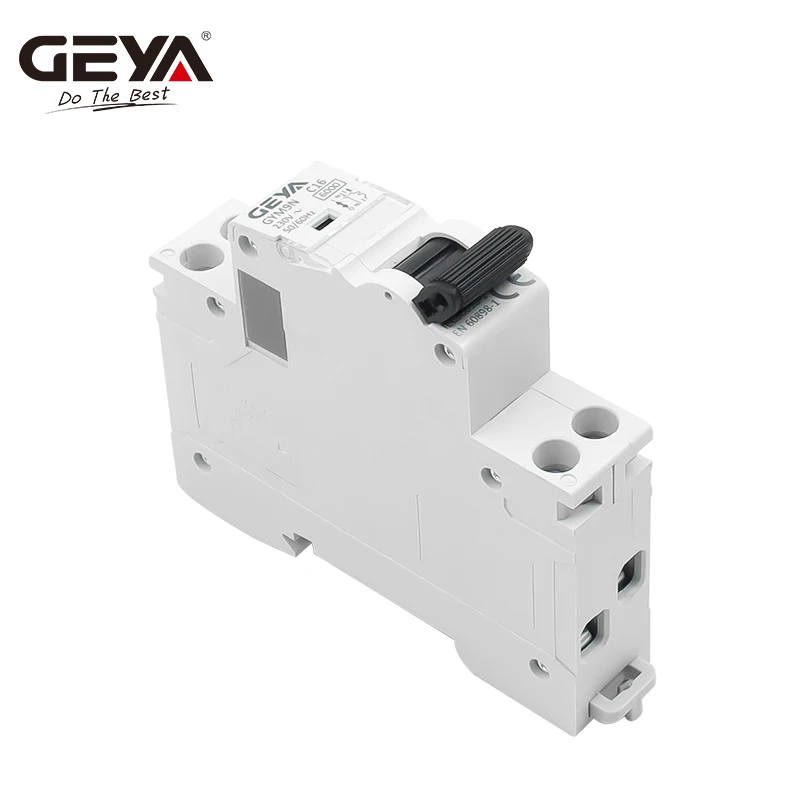

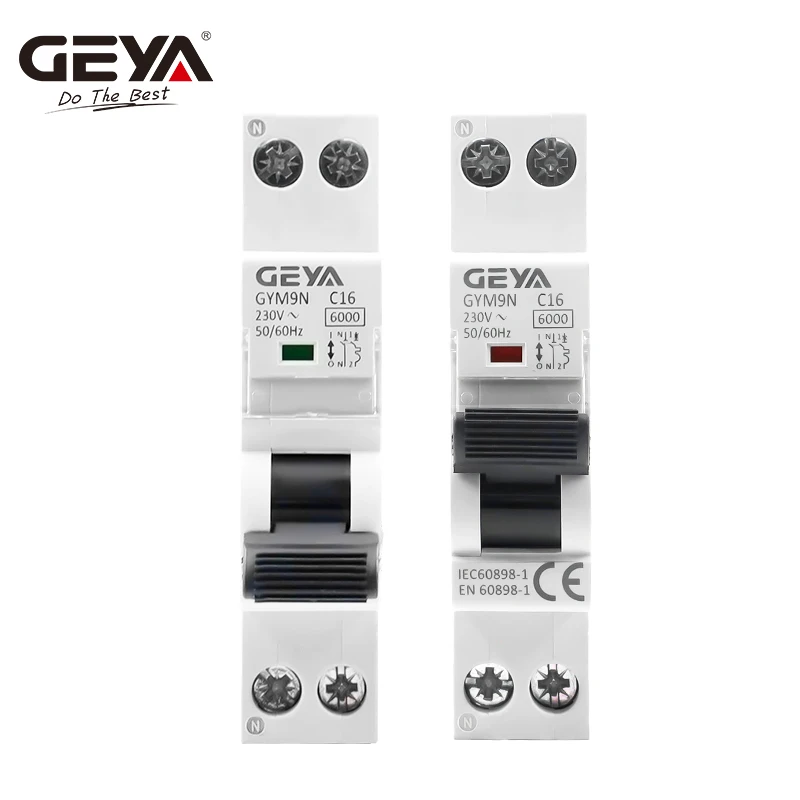

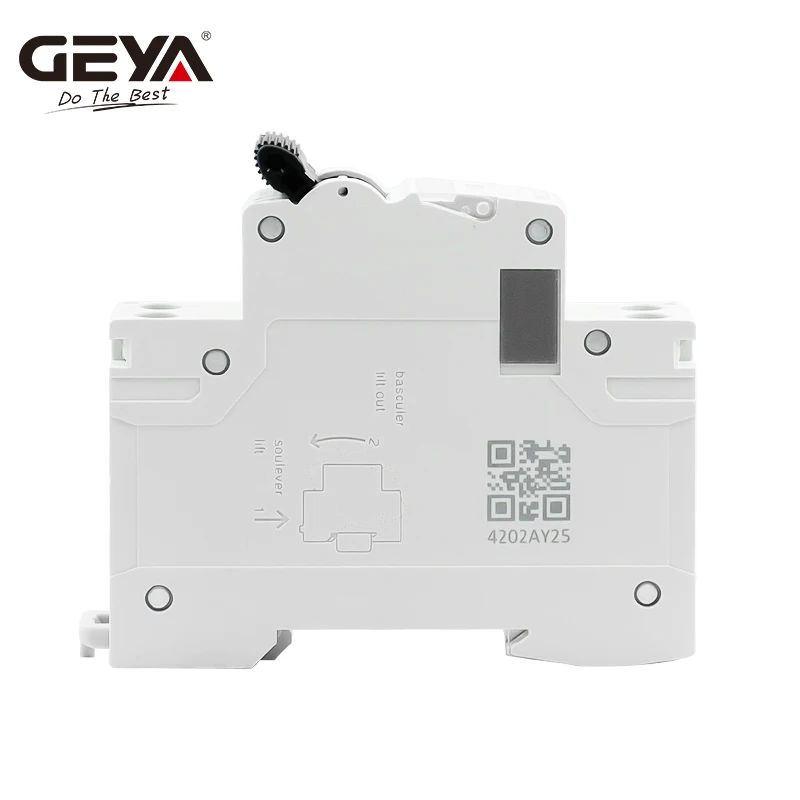

Product Name: GYM9N Mini Circuit Breaker

Rated Frequency: 50/60Hz

Rated Voltage: 220/380V

Standard: IEC/EN60898-1

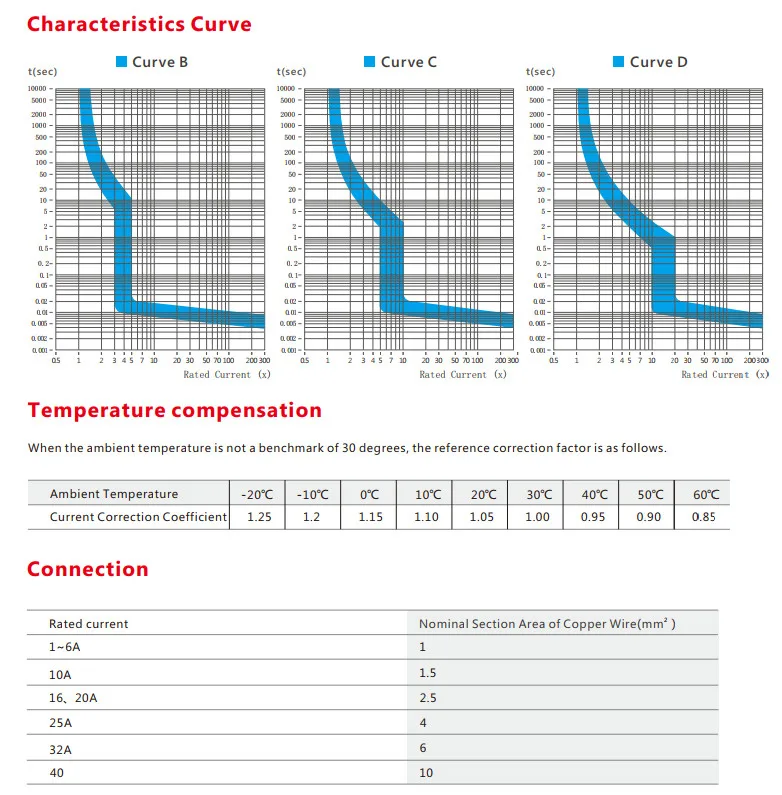

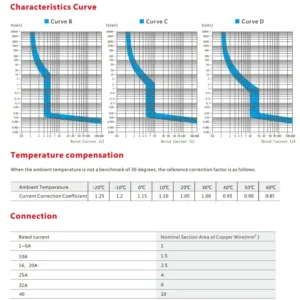

Thermo-magnetic release charateristic: C Curve B Curve

Type: Mini,Circuit breaker

Voltage Ue: AC230~

is_customized: Yes

semi_Choice: yes





General

GYM9N miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, rated voltage 230V and rated current from 1A to 40A.
It also can be used for non-frequent on-and-off switch operation under normal circumstance.

~In complicance with IEC/EN60898-1.
~With indicator function in the contact position.
~Transparent cover designed to carry label.
~Bilateral busbar wiring capabilities to adapt to the wider use of premises.

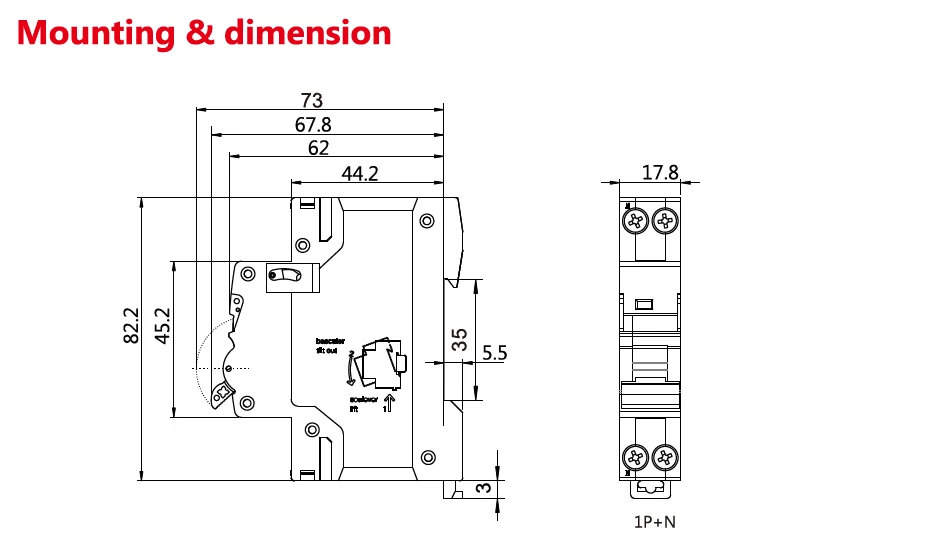

~Maximum connecting ability of 16mm2, wiring torque 2.5N*m, applicable to a variety of installing equipments.
