SPECIFICATIONS

Brand Name: GEYA

Breaking Capacity: 6KA

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

EU LVD Voltage: Low voltage: Below 50Vac or 75Vdc

Electrical Life: 8000

High-concerned chemical: none

Insulation Voltage Ui: 500V

Is Smart Device: no

Mechanical Life: 10000

Model Number: GYM9 2P MCB 6KA

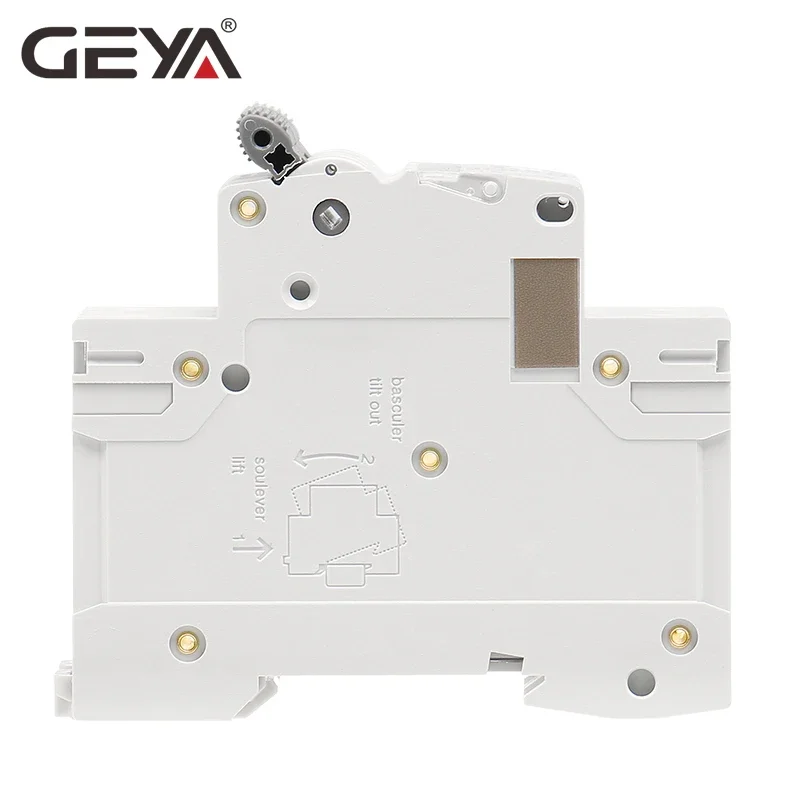

Mounting: Din Rail

Origin: Mainland China

Poles: 2P

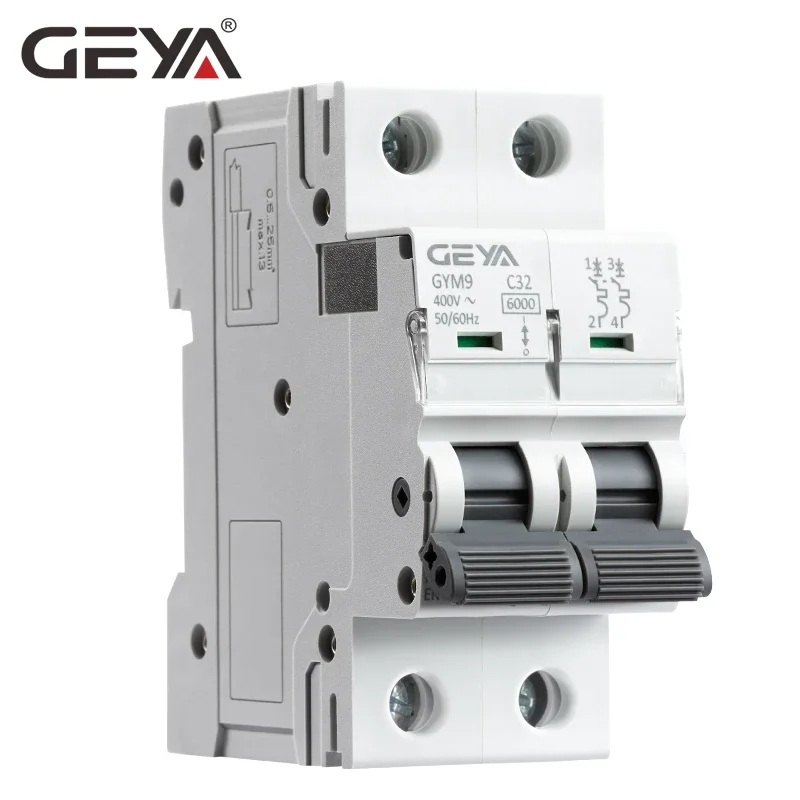

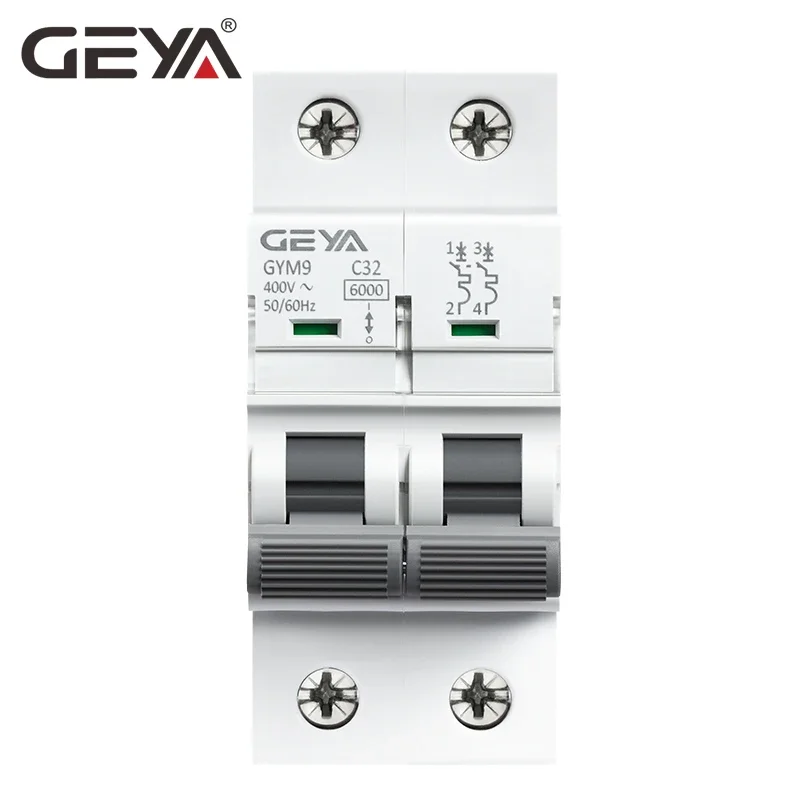

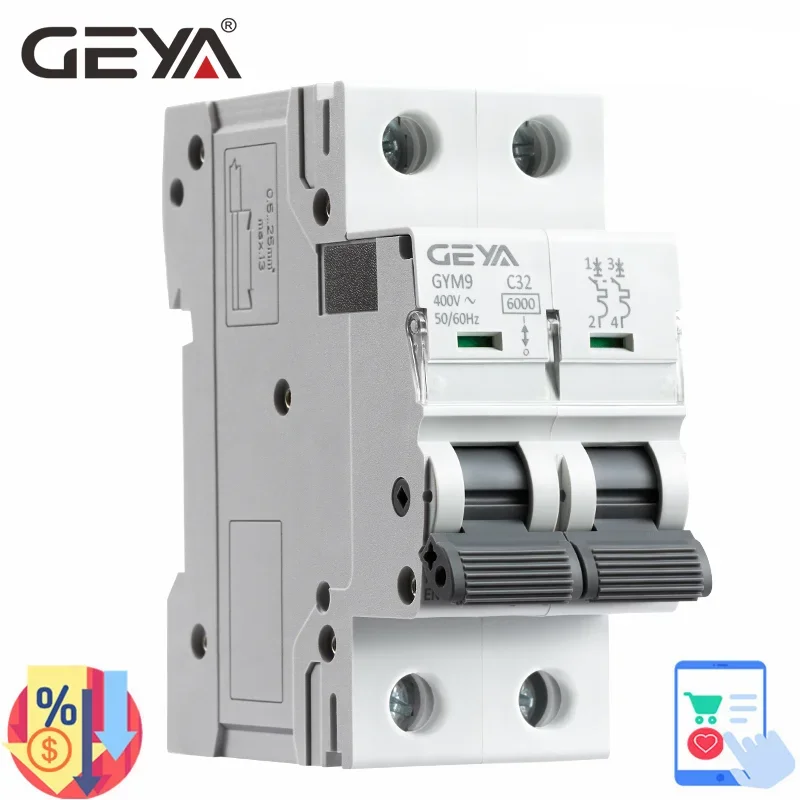

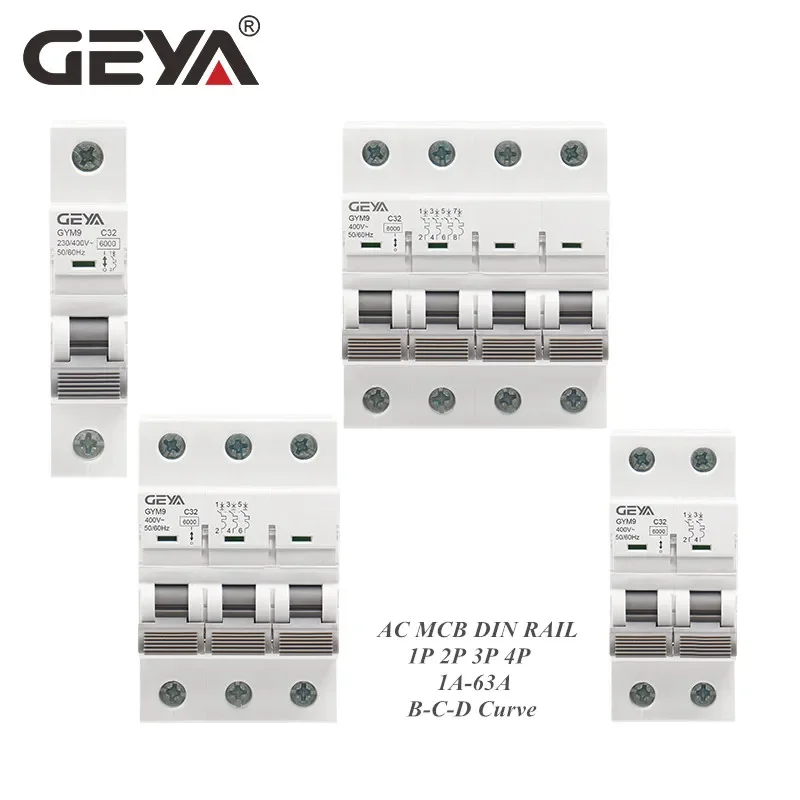

Product Name: GYM9 Mini Circuit Breaker

Rated Current: 6A 10A 16A 20A 25A 32A 40A 50A 63A

Rated Frequency: 50/60Hz

Rated Voltage: 220/380V

Rated Voltage Ue: AC400V

Standard: IEC/EN60898-1

Thermo-magnetic release charateristic: C Curve

Type: Mini,Circuit breaker

is_customized: Yes

semi_Choice: yes

General
GYM9 miniature circuit breaker is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, rated voltage 230V/400V and rated current from 1A to 63A.
It also can be used for non-frequent on and off switch operation under normal circumstance.

~In complicance with IEC/EN60898-1.
~With indicator function in the contact position.
~Transparent cover designed to carry label.
~Bilateral busbar wiring capabilities to adapt to the wider use of premises.
~Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments.

Technical Data
